A Retro Digital Sound
SWAY is modeled after a famous 1989 synthesizer that combined FM synthesis with sample based synthesis. This combination allows for the creation of some unique timbres—from realistic to synthetic, and everything in between.
Patch compatibility means you can access the vast library of sounds made for the original hardware, in the form of SysEx files that can be imported. Patches made with SWAY can also be loaded into the original hardware by exporting them as SysEx files.
SWAY is still in development, with a private beta test launching soon. If you would like to be notified when the it's ready for release, please subscribe to the newsletter.
FM Synthesis
Advanced FM synthesis module featuring 6 operators, 15 waveforms, up to 3 configurable feedback paths, and 45 algorithms.

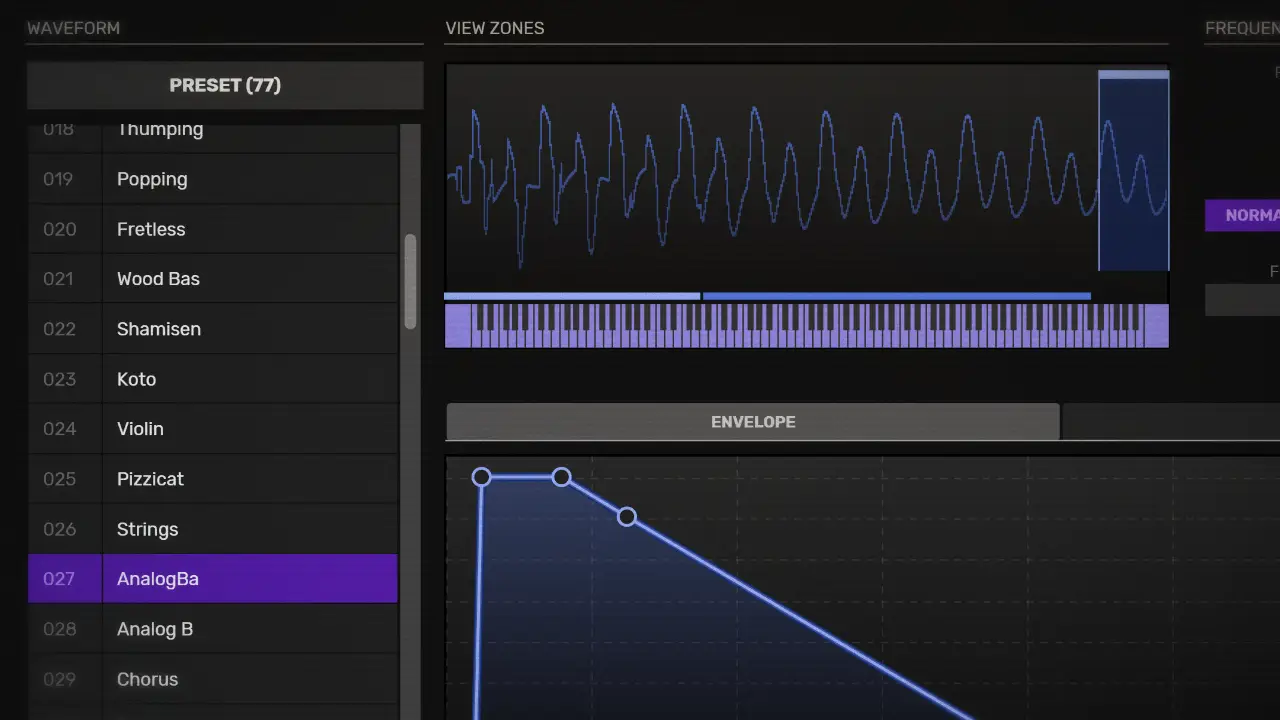

PCM Synthesis
Advanced waveform module that can play back samples with a frequency rate up to 48kHz.

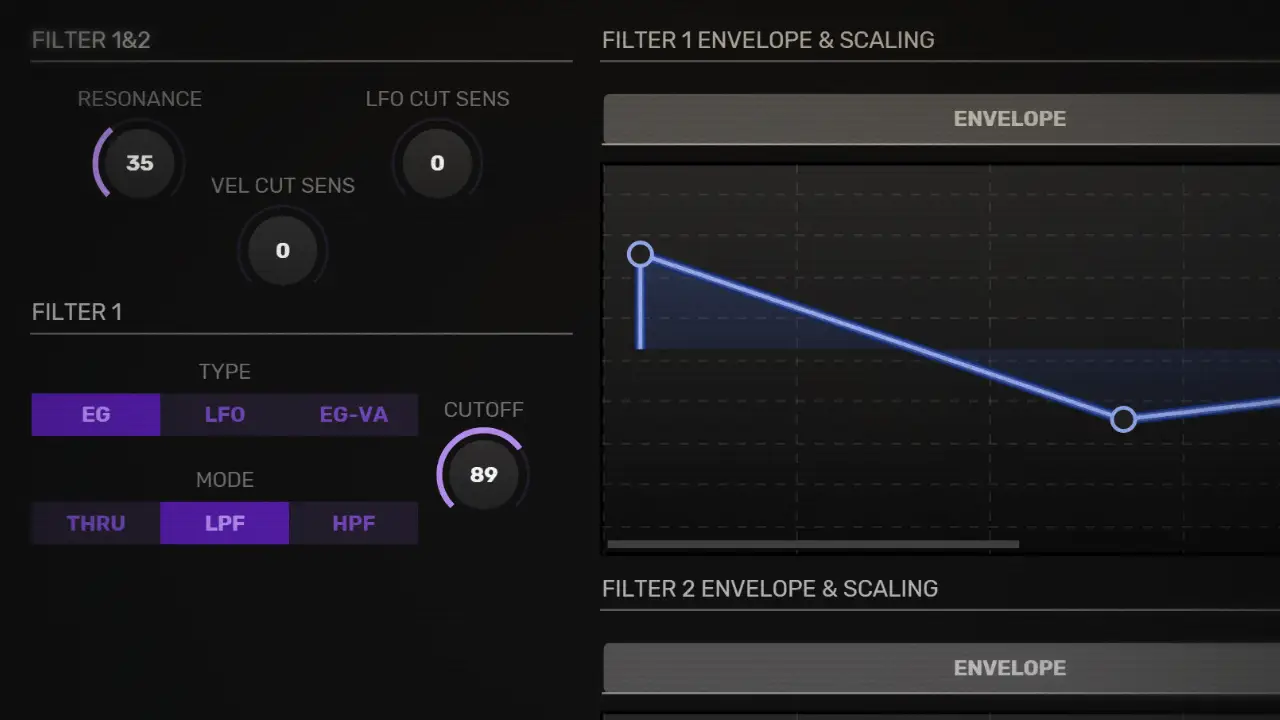

Digital Filter
FM and PCM elements can be shaped using a dual-resonant filter setup: one LPF/HPF and one LPF, both with 12 dB/octave slopes.

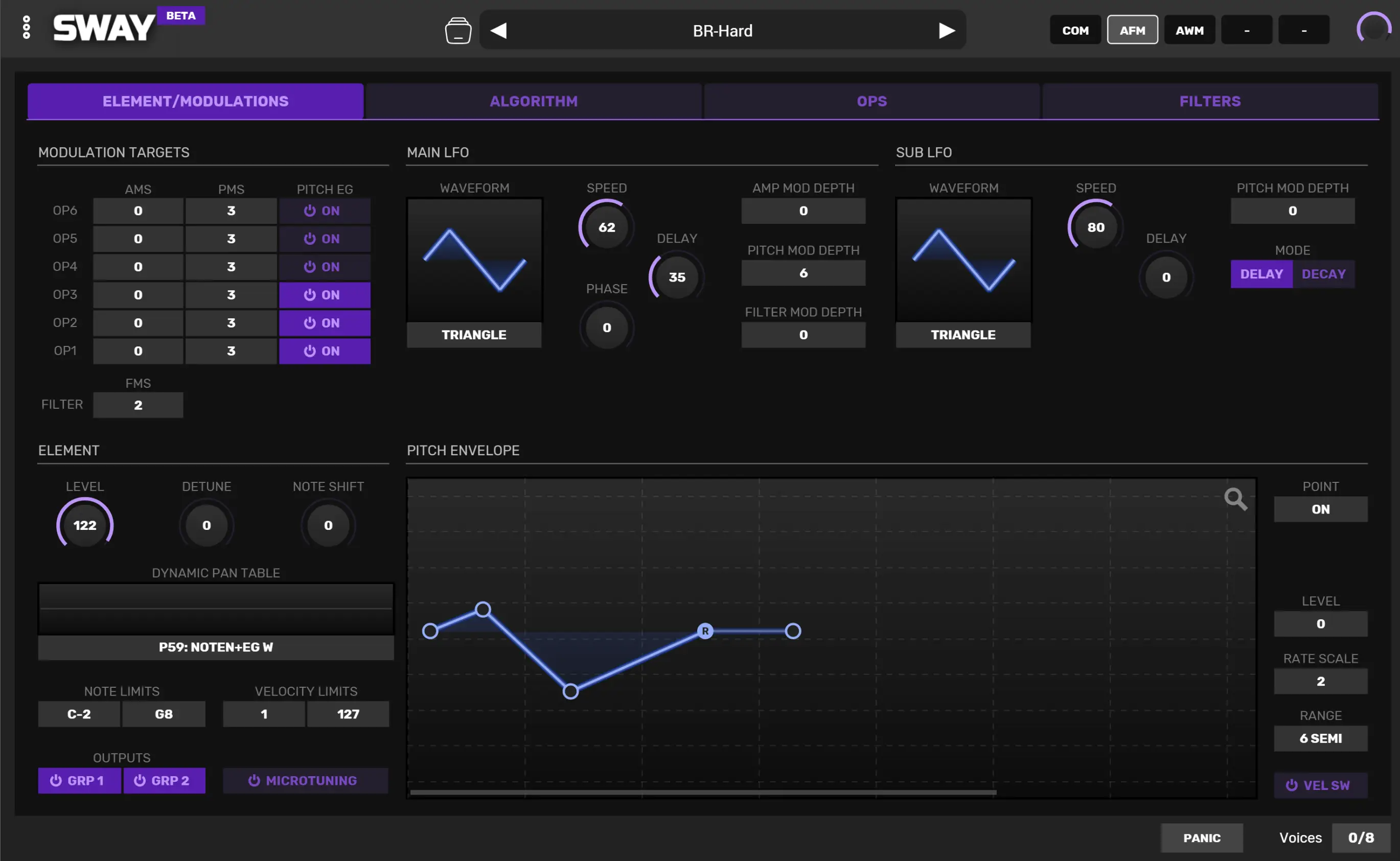

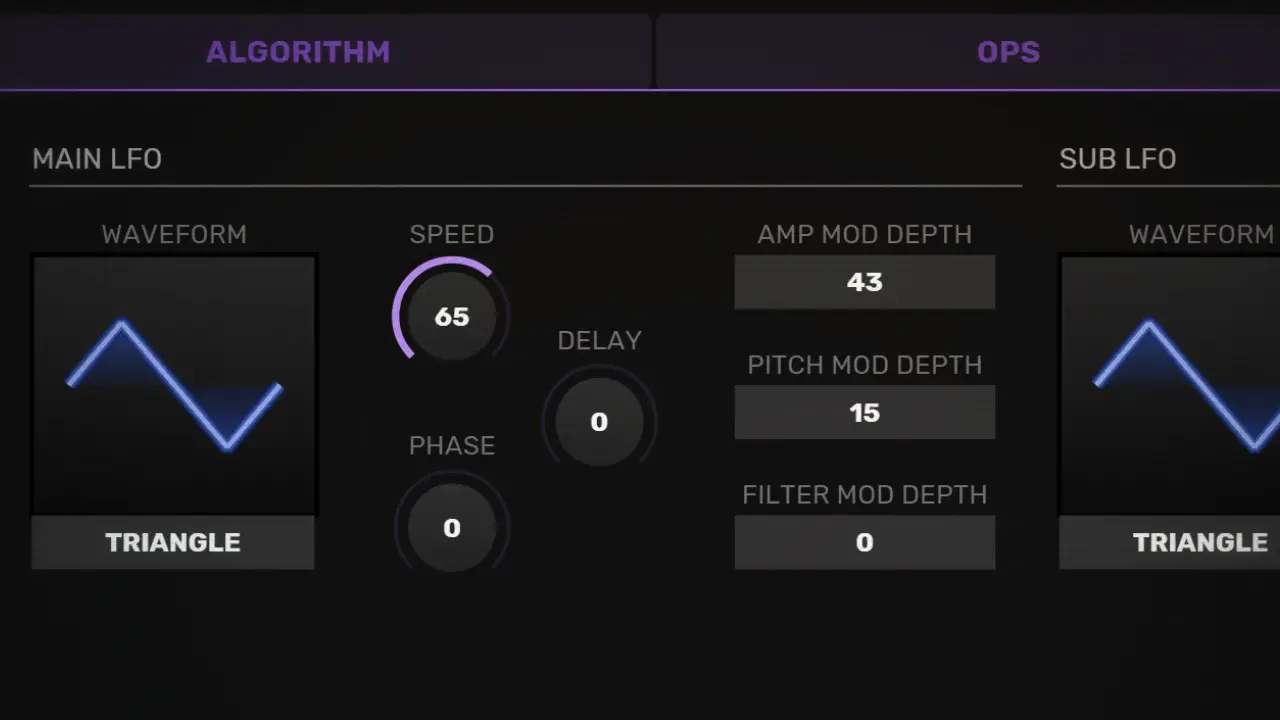

Modulation
Individual operator and sample volumes can be automated using envelopes. The same applies to pitch and filter cutoff. Additional modulation is available via 2 LFOs.
Effects
Choose from 44 effect types to give your sounds extra character. Including chorus, flanger, delay, reverb, and distortion. Effects can be routed in 3 different configurations.

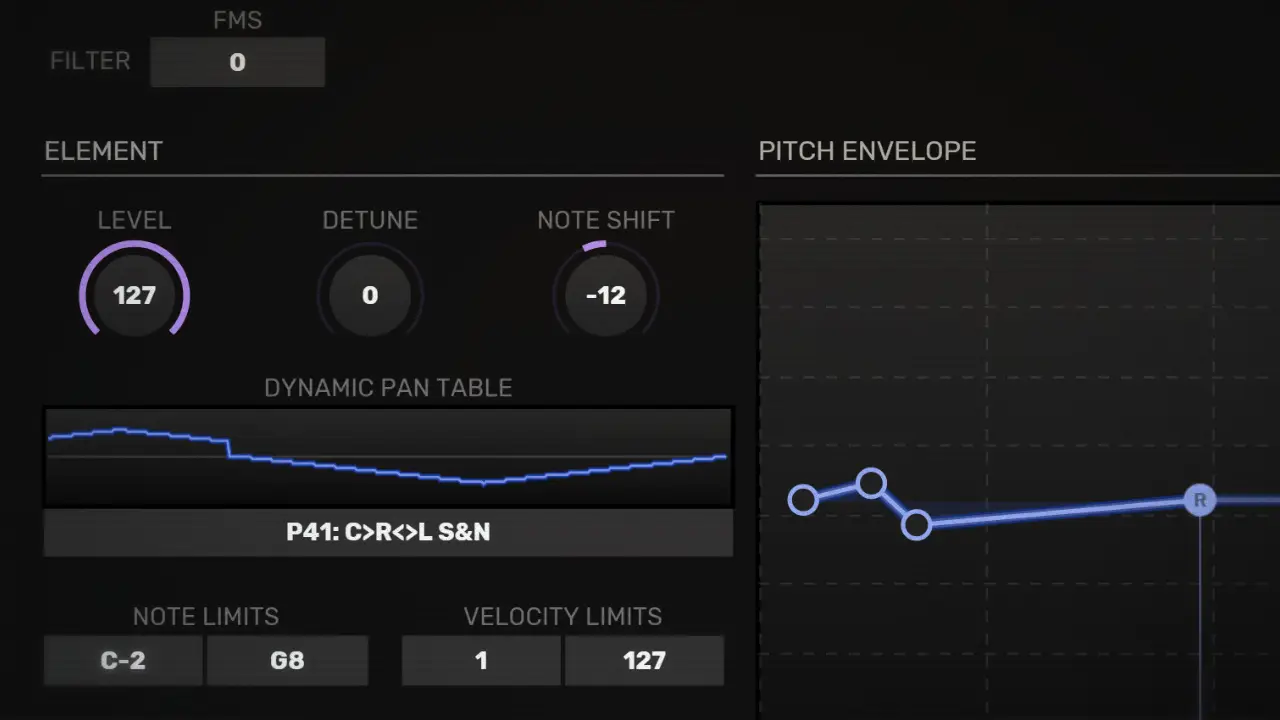

Dynamic Pan
Select from 64 panning envelopes to create a rich, evolving stereoscopic sound field.

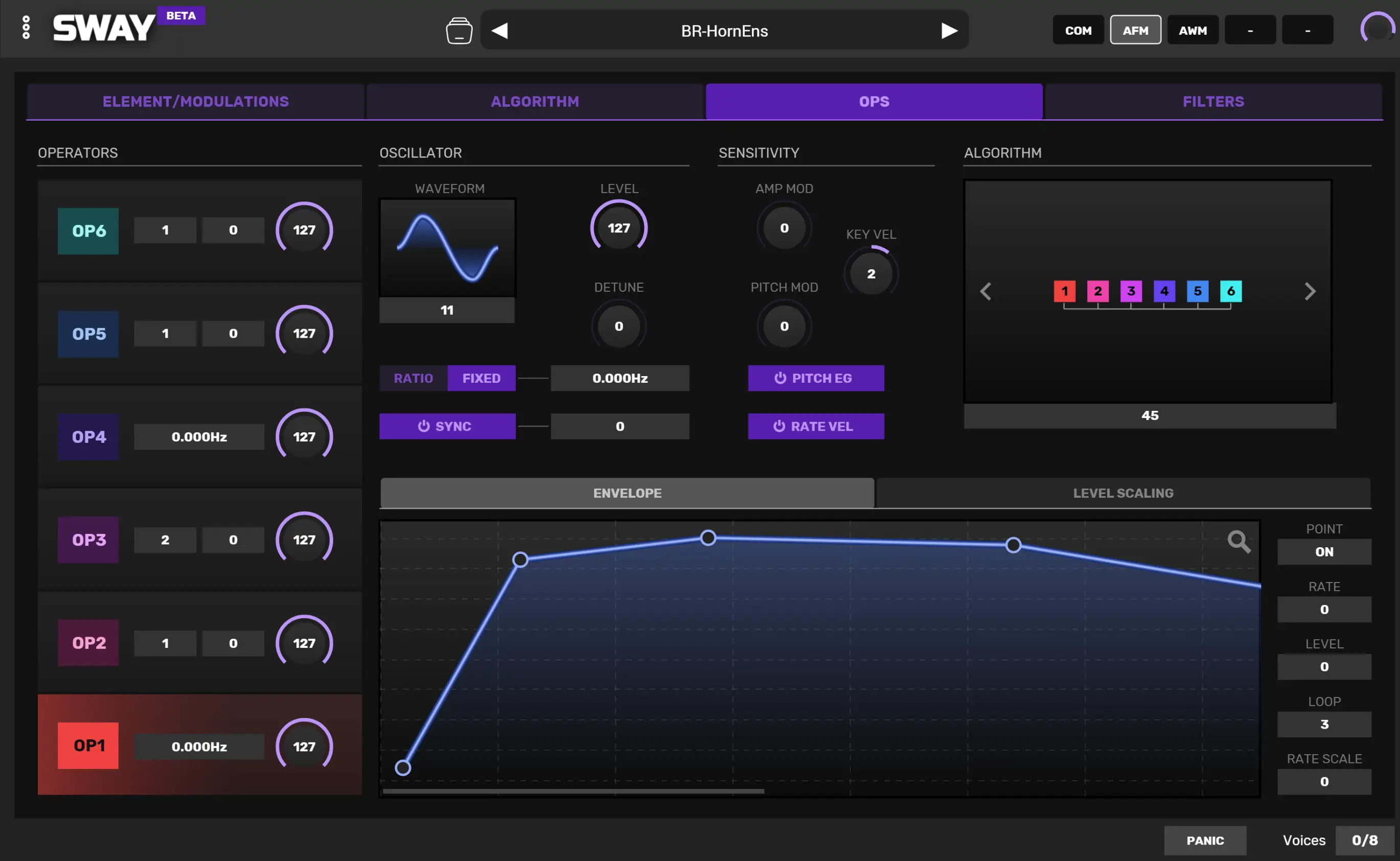

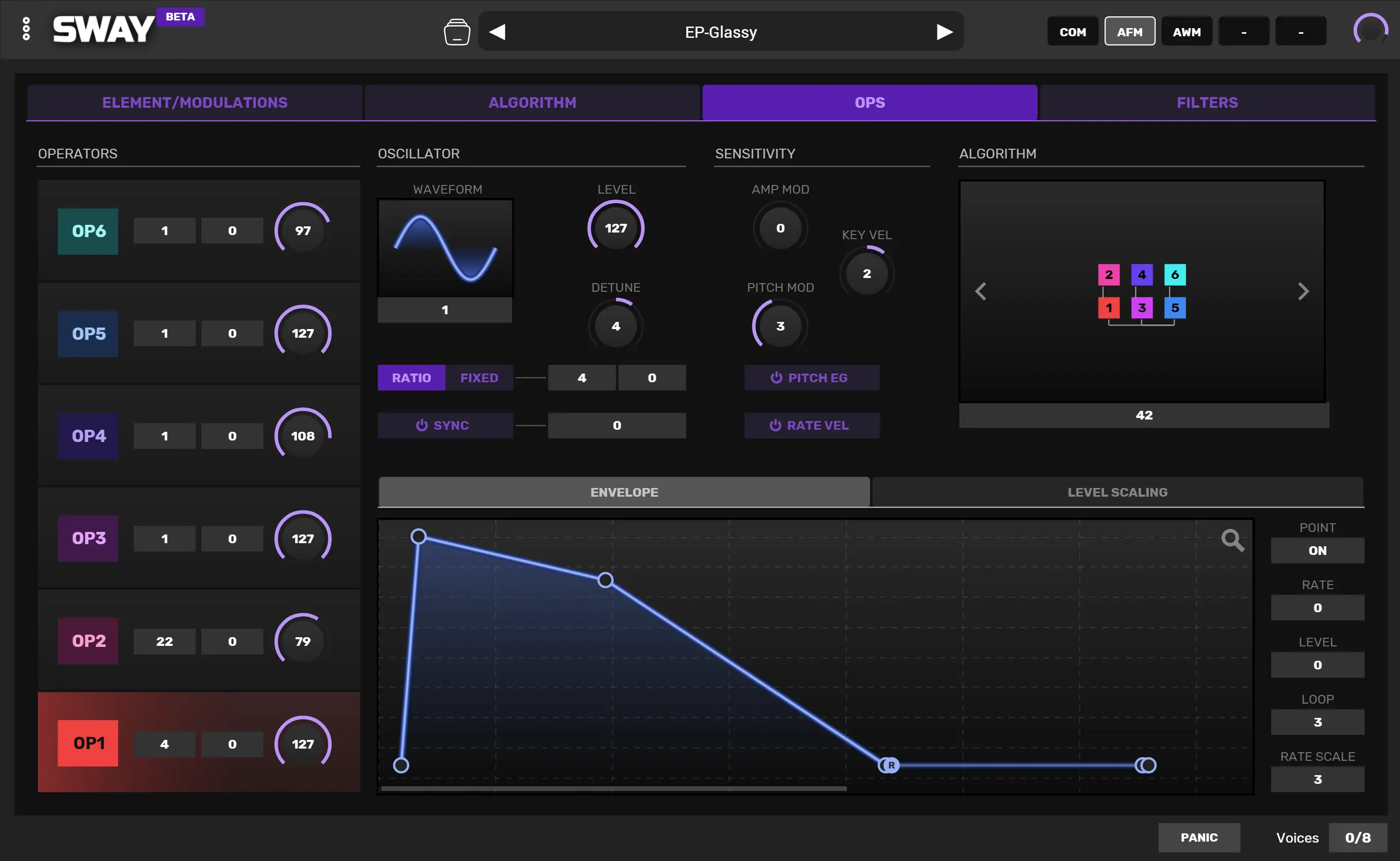

Advanced FM Synthesis

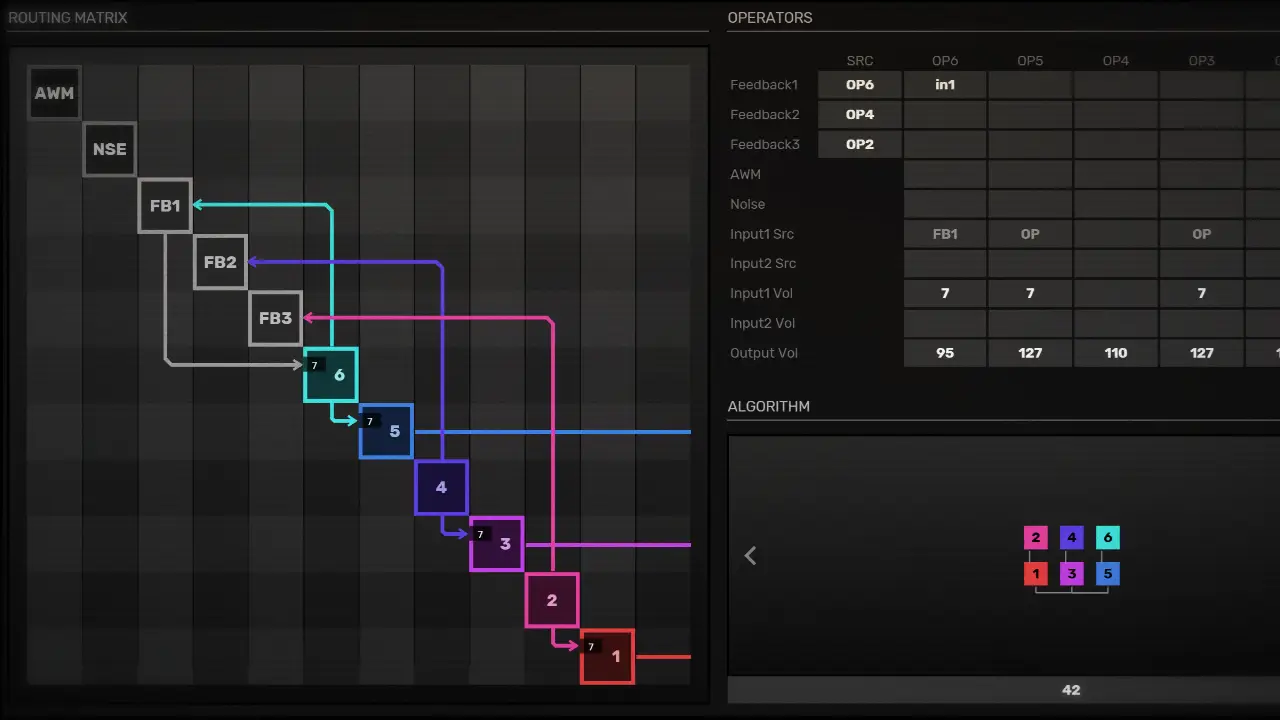

SWAY features a 6-operator FM synthesis module with 15 waveforms and 3 configurable feedback paths. You can select from 45 algorithms to define the routing between operators, or fully customize the signal flow using Freeform Mode.
Each operator has two inputs. Inputs can come from another operator, a feedback path, noise, or even a sample from an AWM element within the same patch.
Every operator includes its own envelope and key scaling curve. Operators can also be modulated by an LFO.
Preset Library
SWAY comes equipped with a rich collection of presets, making it easy to get started with your favorite sounds. It also supports loading SysEx files from the original hardware unit and related series, giving you access to the vast library of sounds available online.
Bass
Slide Bass
Electric bass combined with a thick synthesized bass
VCO Bass
Fat virtual analog goa trance bass
Keys
EP-NiteHwk
Silky smooth glassy e.piano made of two FM layers
KY-Clavi
A punchy clavinet patch
Pads
SP-Slides
Warm filter sweep FM pad with a big stereo spread
SP-Apollo
Dual layer sample based bell pad
Synths
Shine.DCY
Evocative harpsichord like synth patch with two sample layers
Wind Synth
Analog saw sounding lead
Effects
SE-Them!!!
Eerie atmosphere consisting of 2 FM layers and 2 sample layers
ME-Blade
Evolving synth effect with modulating filter
Drums
E. Tom
Combination of a sampled tom with a FM synthesized tom
Afro 1
Dynamic FM synthesized percussion

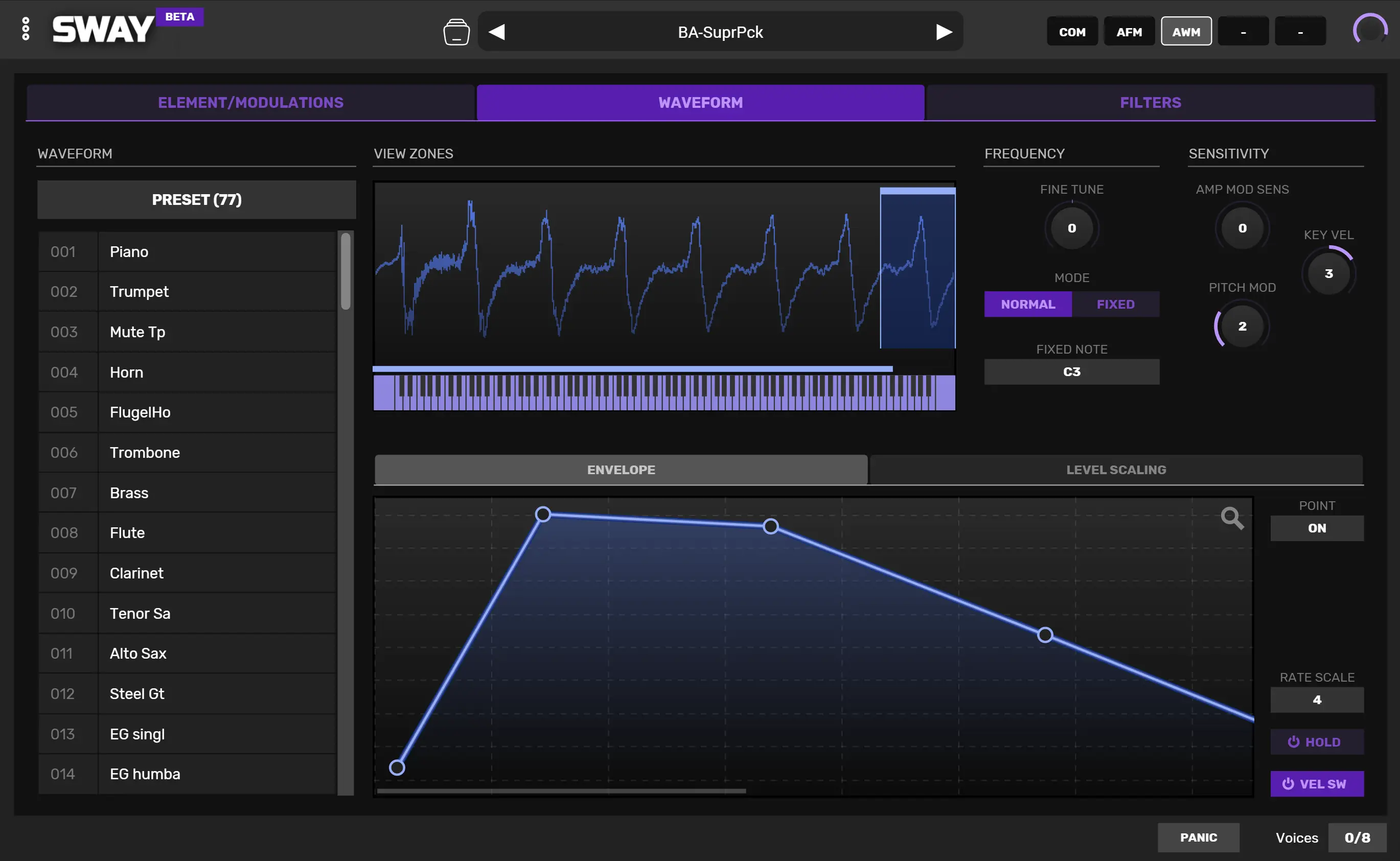

Sample Waveforms
SWAY includes 112 preset waveforms and 80 expansion card waveforms. The preset waveforms are approximations of the original hardware's samples, recreated from scratch using a mix of custom recordings, public domain samples, and synthesis. The 80 expansion card waveforms are unique to SWAY.
You can also supply your own waveform ROM files, as long as they follow the original hardware's file format. This applies to both preset and card sources. Simply place your files in the ROM folder, and they will be loaded automatically. A future update will add support for loading your own audio files and building custom multisample waveforms.
Demos
Explore a selection of audio demos that highlight the sonic capabilities of SWAY. All sounds are created entirely with SWAY, with minimal external processing applied to enhance the mix.
Jazz Fusion Demo
Showcasing a combination of FM and PCM patches, featuring a drum set with a gated reverb effect
Passing Breeze
A SWAY cover of the OutRun theme, originally composed by Hiroshi Kawaguchi.
AFM Demo
A showcase of FM-only patches.
AWM Demo
A showcase of PCM-only patches.
Atmospheric Demo #1
80s-style new age soundscape #1.
Atmospheric Demo #2
80s-style new age soundscape #2.

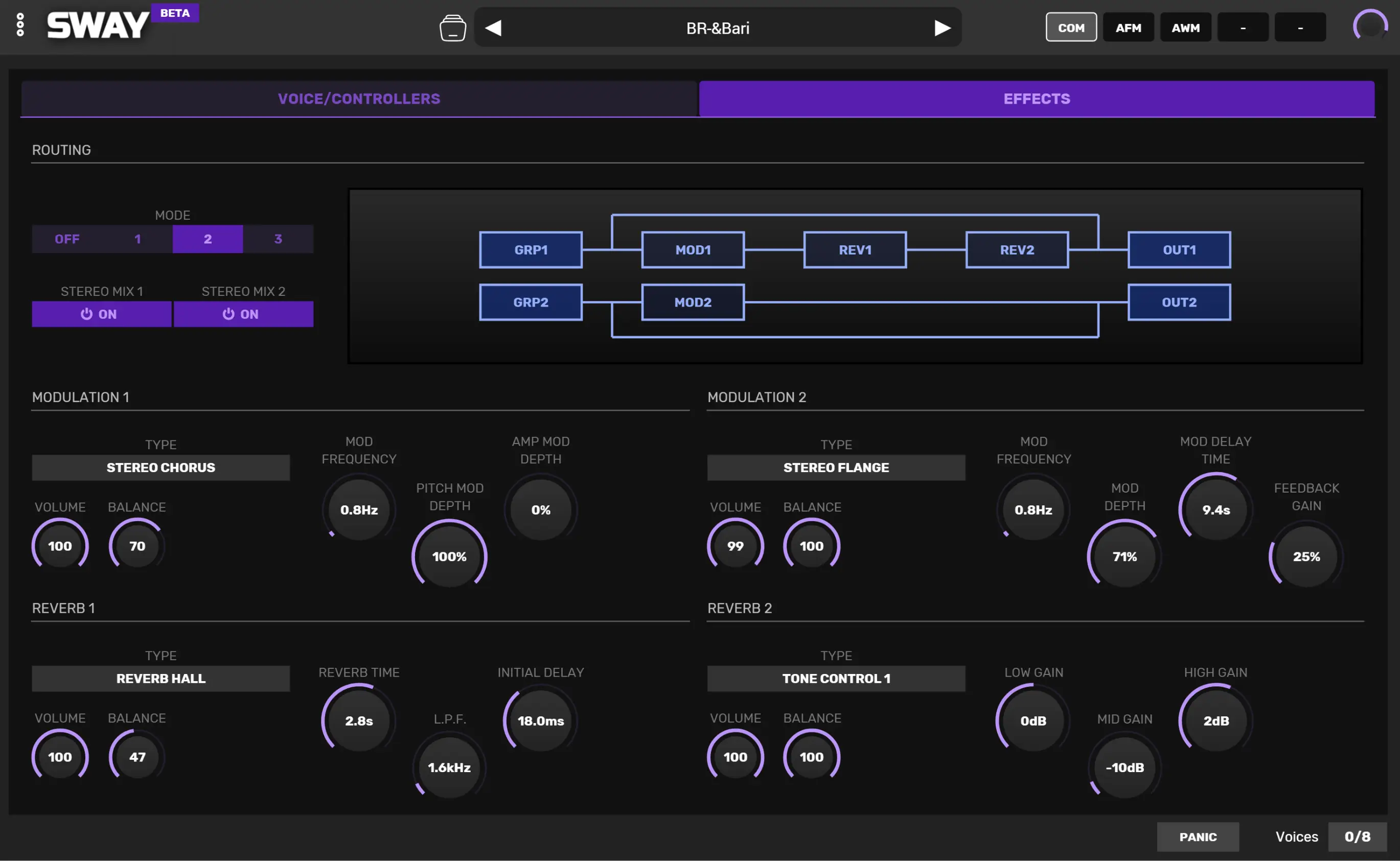

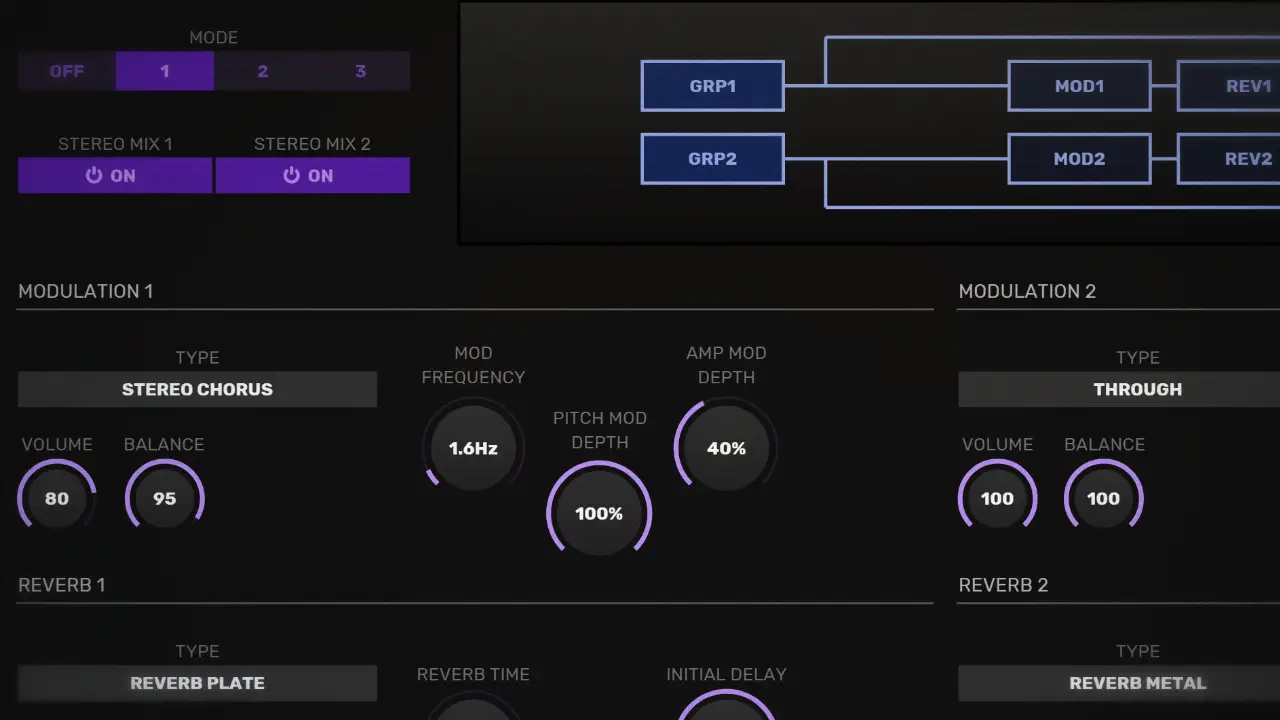

Effects
SWAY includes 44 built-in effects. Each element in a patch can be routed to Group 1, Group 2, or both. Each group supports one modulation effect (such as chorus, flanger, tremolo, or ensemble) and one reverb-type effect. Reverb effects include various types of reverb, as well as delay, distortion, EQ, and hybrid combinations.
There are three routing options available: serial, parallel, and a mixed configuration that falls between the two.
Each effect includes individual volume and dry/wet controls for precise sound shaping.
Requirements and formats
SWAY is available exclusively as a plugin for DAW software. It does not run as a standalone application.
Windows
- Windows 8 or higher
- DAW with VST3 support
- 64-bit
macOS
- macOS 12 or higher
- Apple Silicon or Intel processor
- DAW with VST3 or AUv2 support
- 64-bit
